Broadcast Facilities

Central apparatus rooms handling mixed SD and HD signals can consolidate distribution across a single modular frame. The output grouping feature lets operators switch entire studio bays or edit suites with a single command, reducing the risk of partial routing errors during live operations.

Post Production & Dubbing

Post houses and dubbing facilities benefit from per-output signal assignment and the ability to group output blocks. A single source — reference black, color bars, or a program feed — can be routed to multiple bays simultaneously, without the fixed topology constraints of a conventional DA.

Remote & Distributed Sites

Facilities where operators cannot be physically present rely on the built-in web interface and optional Ethernet-connected hardware panels for full remote control. The optional MX-Bus module allows a UDS frame to integrate directly into a larger SC-4 system, extending control across geographically distributed infrastructure.

Crosspoint Switching. Distribution Amplifier Economy.

The UTAH-100/UDS is built around 16-port I/O modules interconnected by a crosspoint fabric. Any input can drive as many outputs as needed — and because each output is individually assignable, you get routing flexibility at distribution amplifier pricing. A 4RU frame supports a 144x144 matrix drawing less than 100W.

Standard I/O modules use HD-BNC connectors for high-density multi-rate digital signals from 3Mbps to 3Gbps, with reclocking on all SDI rates. When the application calls for fiber, HDMI/DVI, analog video, or IP-encapsulated DVB-ASI, those same slots accept FLEX I/O modules fitted with 8 dual-port SFP cages — no new frame required.

Three frame sizes scale from a 1RU 32x32 to a 4RU 144x144. Each frame carries dual DC power inputs, a Reference Video input for vertical interval switching, and a controller module with Ethernet and Serial ports. Swapping that controller for an MX-Bus module integrates the UDS directly into an SC-4 system.

• ✓ Multi-rate digital I/O cards: 16 ports per card, HD-BNC, 3Mbps–3Gbps
• ✓ FLEX I/O modules: fiber, HDMI/DVI, analog composite, IP-encapsulated DVB-ASI
• ✓ Built-in web interface with output block grouping for dubbing and edit bay switching

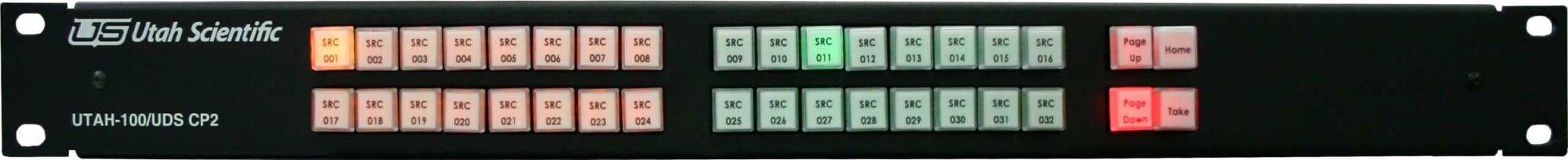

• ✓ Optional UDS-CP2 (32 programmable buttons) or UDS-XY full-matrix hardware panels
• ✓ iPad app control via Wi-Fi with automatic configuration and label download

UDS-32

32 × 32 Matrix

UDS-64

64 × 64 Matrix

UDS-144

144 × 144 Matrix

Shared Across All Three Frames

Same 16-port I/O module ecosystem  ·  FLEX I/O option for fiber, HDMI/DVI & IP  ·  Web interface + hardware panel control  ·  10-year no-fee hardware warranty  ·  3.4" depth  ·  19" rack mount

Not sure which frame fits your facility?

Talk to a Utah Scientific engineer — we'll match the right UDS frame to your signal count, port density, and rack constraints.

Crosspoint Fabric Architecture

A non-blocking crosspoint matrix connects every input to every output. Any source can feed multiple destinations simultaneously, and individual output assignment gives you precise control without dedicated DA hardware.

Multi-Rate SDI with Reclocking

Standard I/O cards handle any SDI rate from 3Mbps to 3Gbps, including DVB-ASI. Input equalization exceeds 100m on Belden 1694 cable, and reclocking is applied at all SDI rates to maintain signal integrity across long signal chains.

FLEX I/O Modular Expansion

Replace standard HD-BNC cards with 8-cage SFP modules to add fiber, HDMI/DVI, PAL/NTSC analog composite, or IP-encapsulated DVB-ASI — all within the same frame slots. Mixed coax and fiber configurations are fully supported.

Three Scalable Frame Sizes

Choose from a 1RU 32x32 drawing under 30W, a 2RU 64x64 under 50W, or a 4RU 144x144 under 100W. All three share the same I/O module ecosystem and control architecture, so expanding to a larger frame preserves your existing investment.

Output Block Grouping

The web interface lets you group output ports into named blocks. A single route command then pushes any input to the entire block — a practical time-saver for dubbing suites, edit bays, and studio systems where reference signals need to switch together.

Flexible Control Options

Control from a web browser, the UDS-CP2 panel with 32 programmable buttons, the UDS-XY full-matrix panel with high-resolution display, or the Utah Scientific iPad app via Wi-Fi. Ethernet and Serial ports are standard on every frame controller.

Frame Specifications

I/O Specifications
